Octagonlock scaffolding system is a new kind of ringlock type scaffolding. The spigots on the standard have 8 straight holes, which perfectly fit the ledger and diagonal heads, making the system more stable. Octagonlock scaffolding is the prototype of a scaffolding system. It is now mainly and widely used in both domestic and abroad markets.

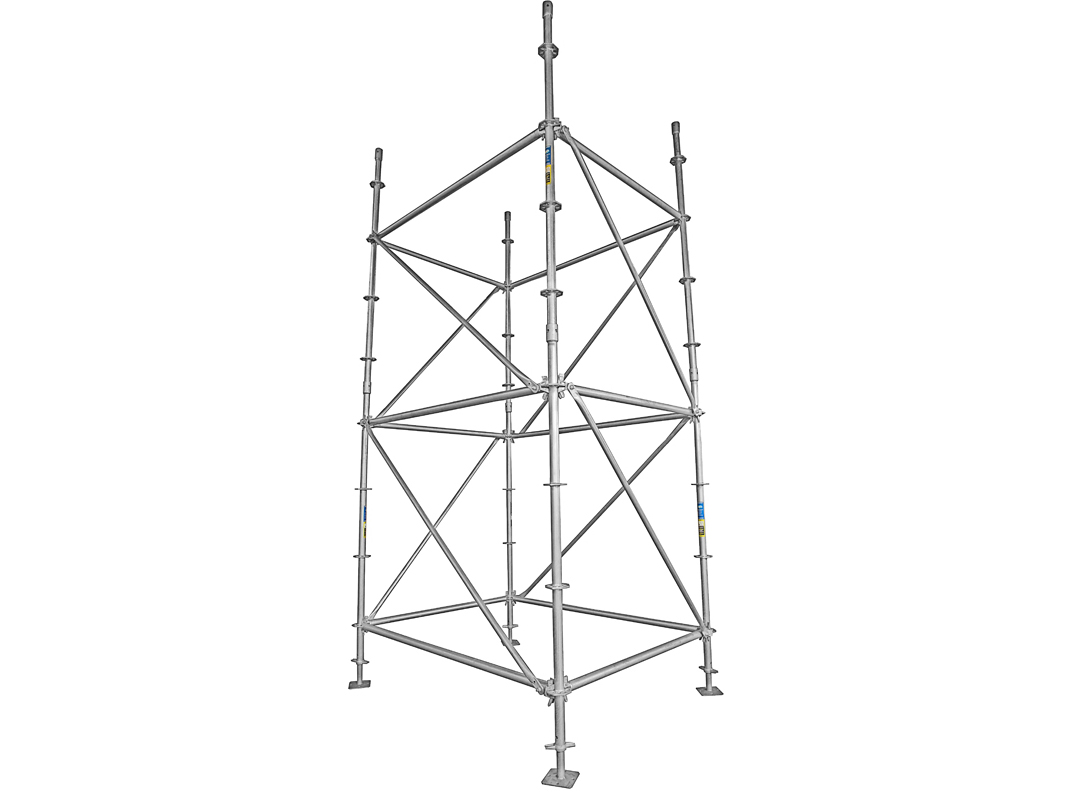

Octagonlock Scaffolding is also a modular scaffolding system. The standard is the vertical part of the whole scaffolding system, and called octagonlock standard or octagonlock vertical. It is welded octagon ring at 500mm intervals. The thickness of Octagon ring is 10mm with Q235 steel material. The Octagonlock standard is made by scaffolding pipe OD48.3mm and thickness 3.25mm, and the material usually are Q355 steel which is high quality steel so that octagonlock standard has a higher load capacity.
The biggest difference between the octagonalock scaffolding and the ringlock scaffolding is the ring welded on the standard, as the outer edge of the octagonalock system is octagon, so it will have impact on the difference as following:
Node torsion resistance

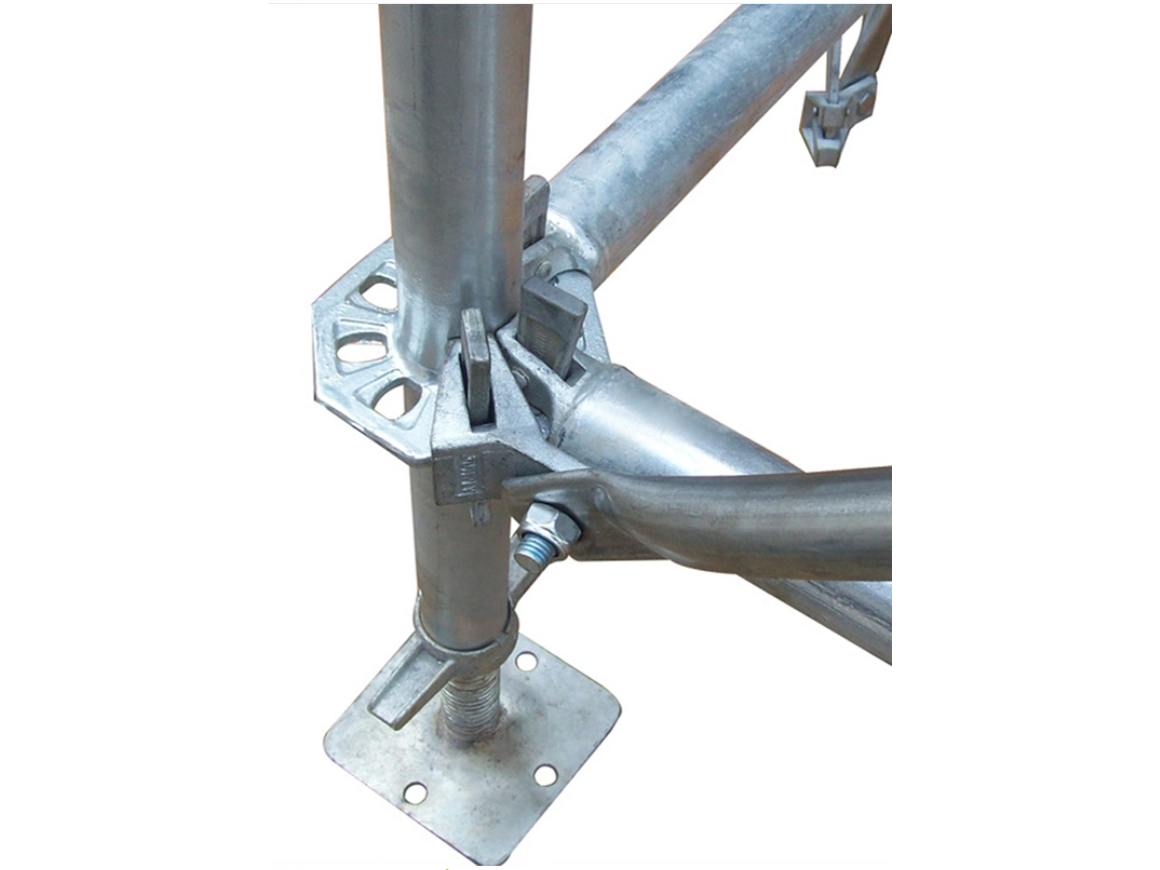

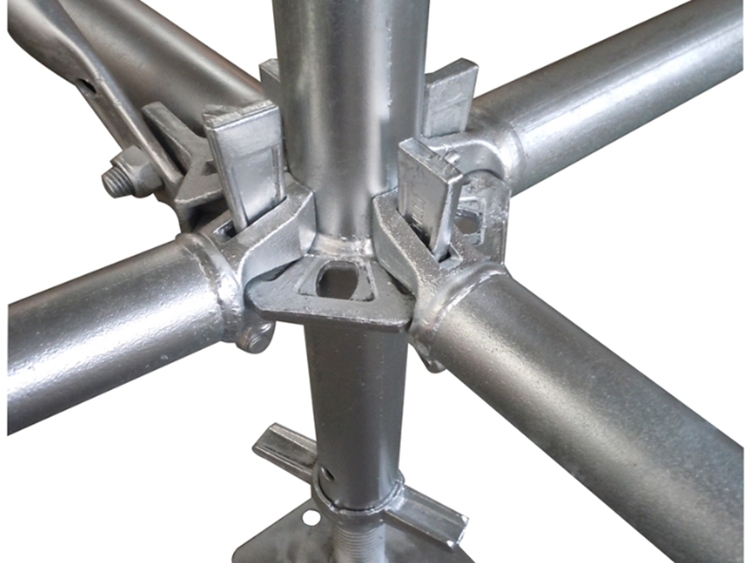

1.Octagonlock Scaffolding: when the Ledger and the standard are connected, the U-shaped groove of the octagonlock ledger is in connect with the edge of the octagon ring. The octagonal ring is the surface contact plus the pin, forming two groups of stable and reliable triangular force-bearing system with strong overall torsional stiffness. And also cause the octagon ring, the unique edger, make the ledger head will not move from one side to other side
2.Ringlock Scaffolding: the U-shaped groove of the ringlock ledger is connect with the rosette which is the point contact and due to the rosette is round edger , that maybe can have a slight movement when using in the project.
Assembling
1.Octagonlock Scaffolding: the standard welded with sleeve spigot and easy to assemble
2.Ringlock Scaffolding: The standard riveted with joint pin, maybe will be take off, and also need base collar to assemble
Wedge pin can prevent jumping off
1.Octagonlock Scaffolding: the wedge pin is curved can prevent jumping off
2.Ringlock Scaffolding: The wedge pin is straight
