Wuxi Reliable is a scaffolding and formwork manufacturer and exporter in china, located in wuxi, china.
 |
| Quantity: | |
|---|---|

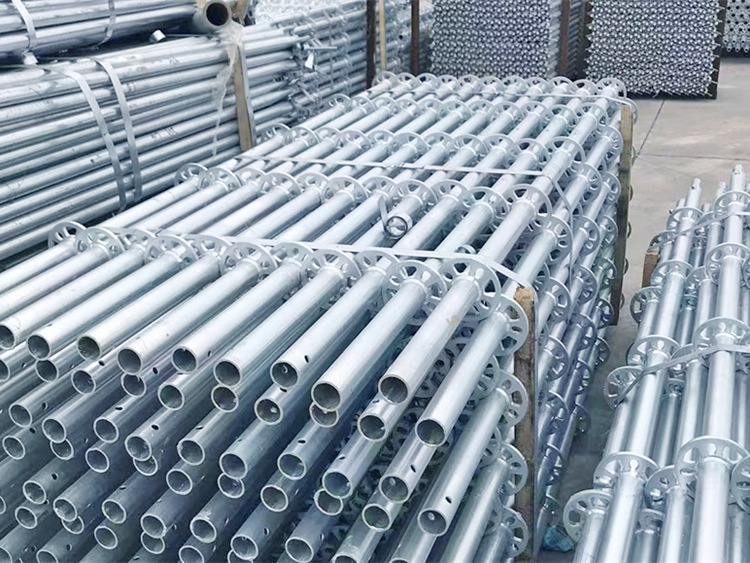

Ringlock scaffolding standard is the most important part of ringlock system, it is made by scaffolding pipe OD48mm usually and also has OD60mm that is heavy duty ringlock system. It will be used according to the construction requirements, OD48mm maybe used by light compacity of building and OD60mm used in heavy duty scaffolding.
The Standard have different length from 0.5m to 4m that can be used into different projects with different requirements.

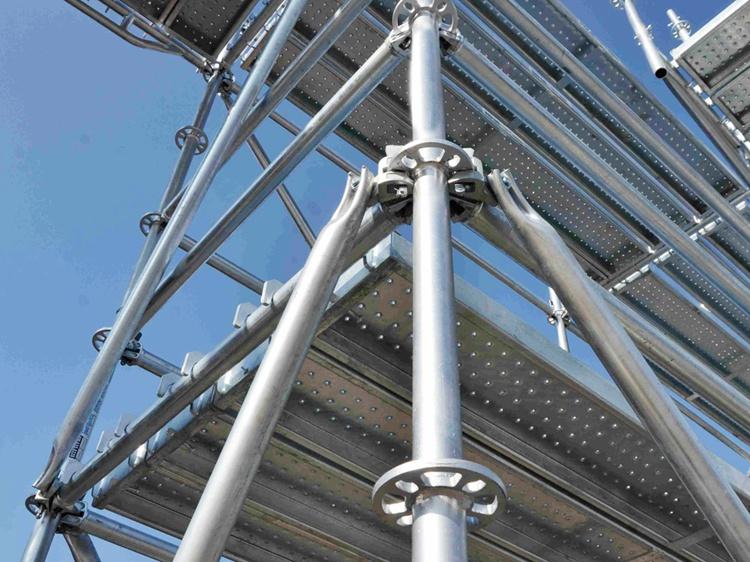

The ringlock scaffolding standard is welded by standard pipe and rosette with 8 holes. Between rosettes kept 0.5m distance that can be same level when the standard is assembled by different length standard. 8 holes have 8 directions, one of 4 smaller holes can connect with ledger, the other 4 bigger holes that connect with diagonal brace. thus the whole system can be more stable with triangle pattern.
Ringlock scaffolding standard is the most important part of ringlock system, it is made by scaffolding pipe OD48mm usually and also has OD60mm that is heavy duty ringlock system. It will be used according to the construction requirements, OD48mm maybe used by light compacity of building and OD60mm used in heavy duty scaffolding.
The Standard have different length from 0.5m to 4m that can be used into different projects with different requirements.
The ringlock scaffolding standard is welded by standard pipe and rosette with 8 holes. Between rosettes kept 0.5m distance that can be same level when the standard is assembled by different length standard. 8 holes have 8 directions, one of 4 smaller holes can connect with ledger, the other 4 bigger holes that connect with diagonal brace. thus the whole system can be more stable with triangle pattern.
